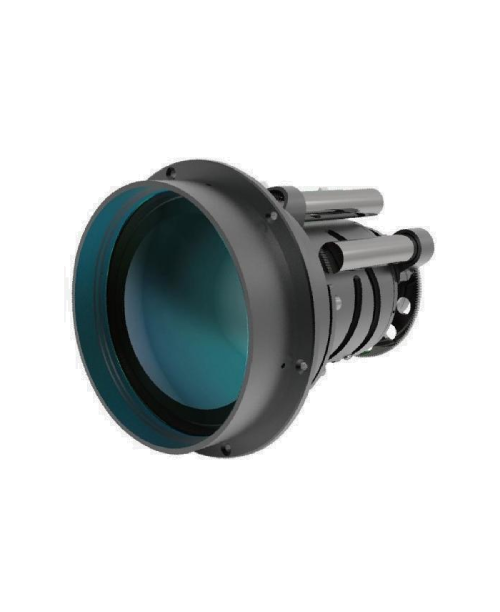

FIFO-LWIRZD2503
| Product Technical Specification | |||||
| Model | FIFO-LWIRZD2503 | FOV(HxV) | 7.68×6.144mm | 4.608×3.456mm | |
| Resolution | 640×512(12μm) | 17.4°×14°~5.8°×4.6° | 10.5°×7.9°~3.5°×2.6 | ||
| Focal Length | 25-75mm | Dimention | Ø124×L132mm | ||
| F# | 1.0 | ||||
| Design Wavelength | 8-14μm | Communication Protocol | Support private protocol, Pelco D protocol and Pelco P protocol | ||
| Focus mode | Auto Focus |
Operating temperature |
-40℃~+60℃ |
||
| Drive voltage | DC12V |
Storage temperature |
-45℃~+70℃ |
||
| Communication mode | RS422、RS485 | Weight | ≤1.8kg | ||
| Waterproof | IP66 (first piece) | ||||
